Name
|

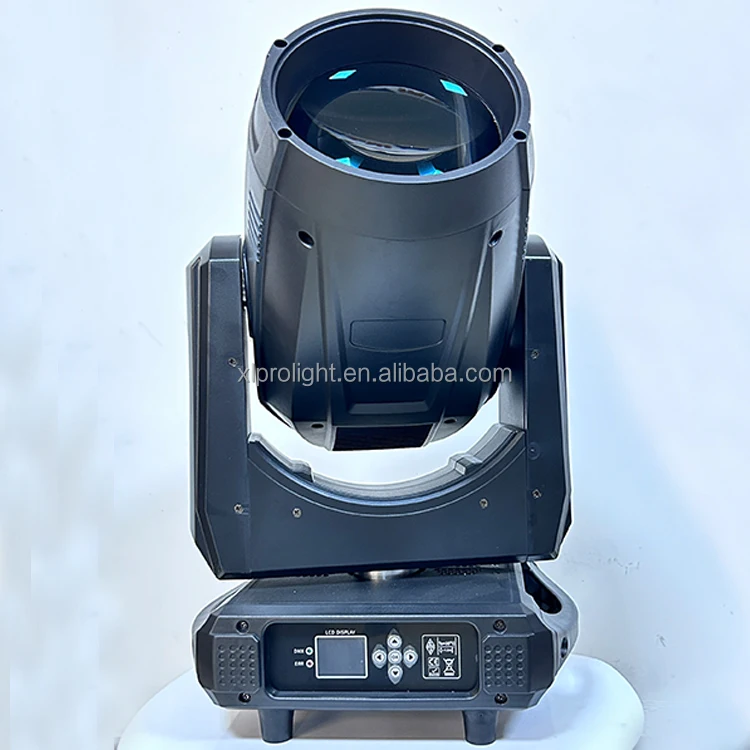

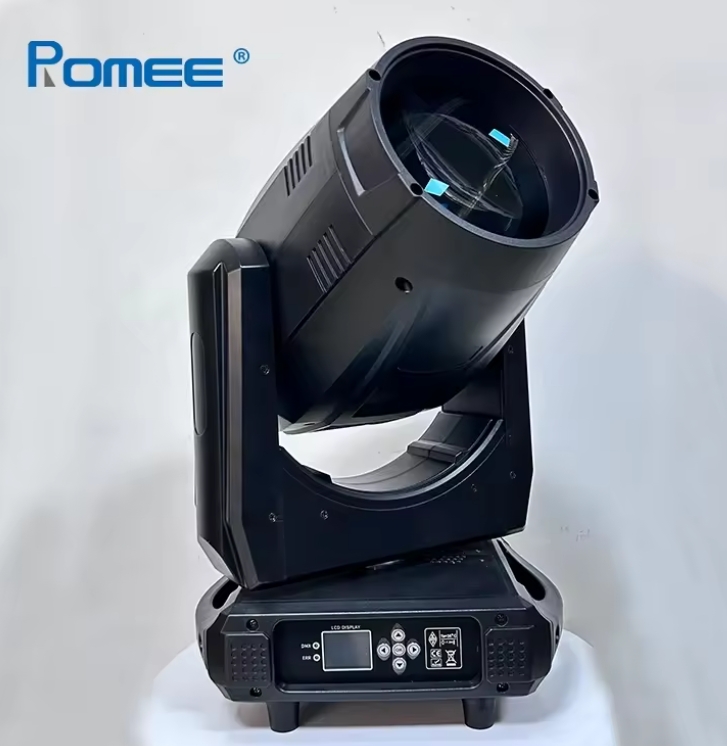

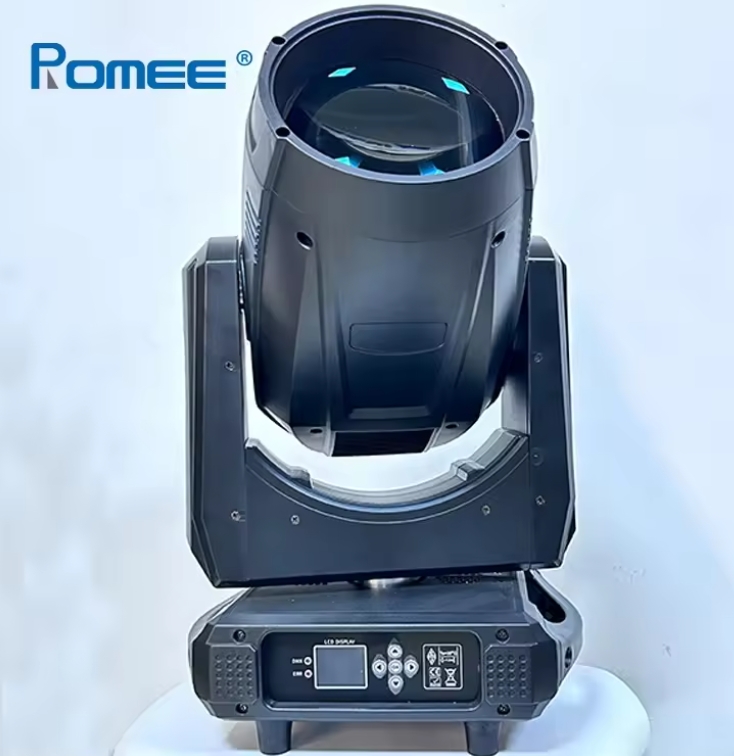

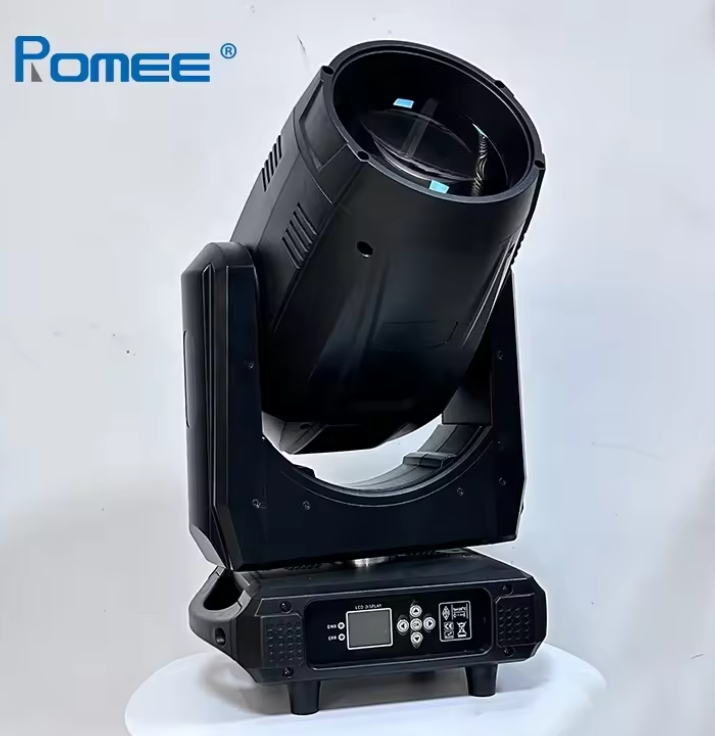

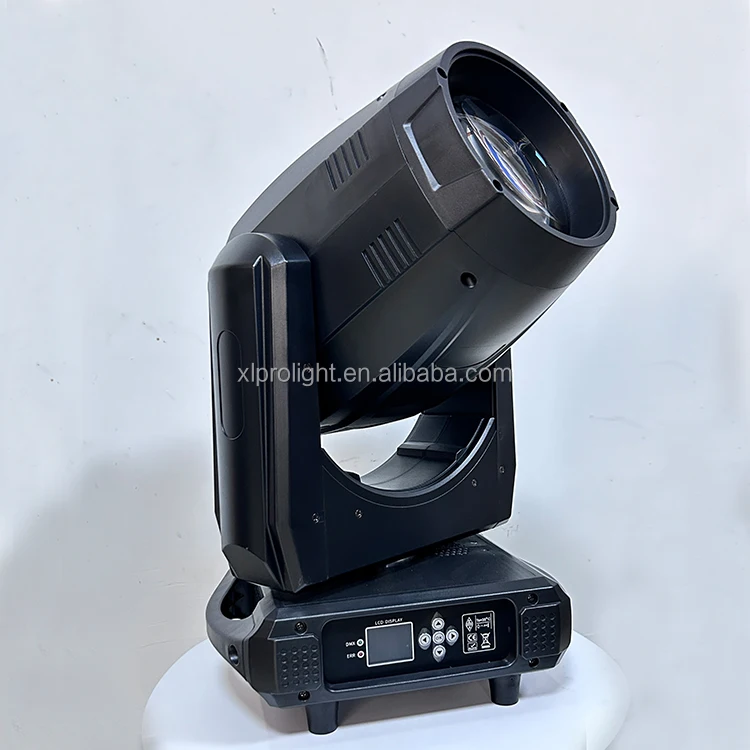

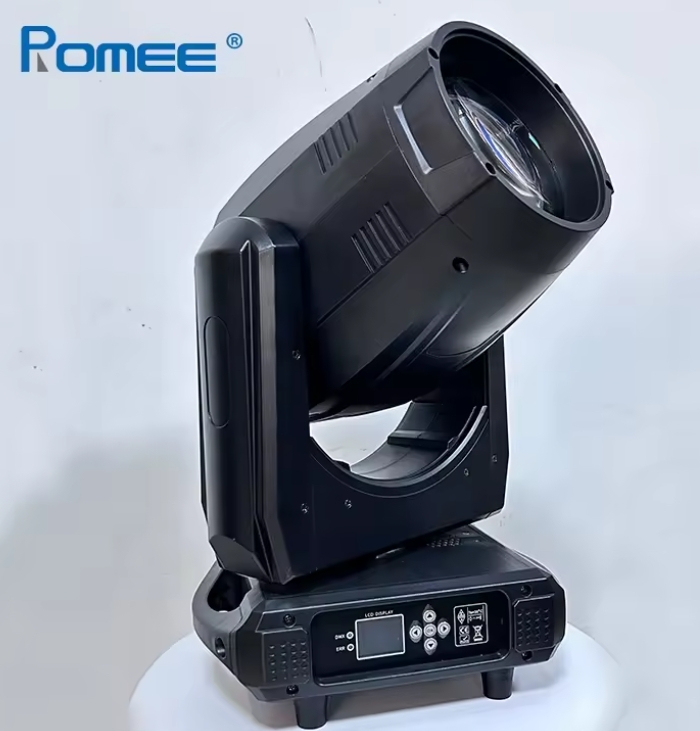

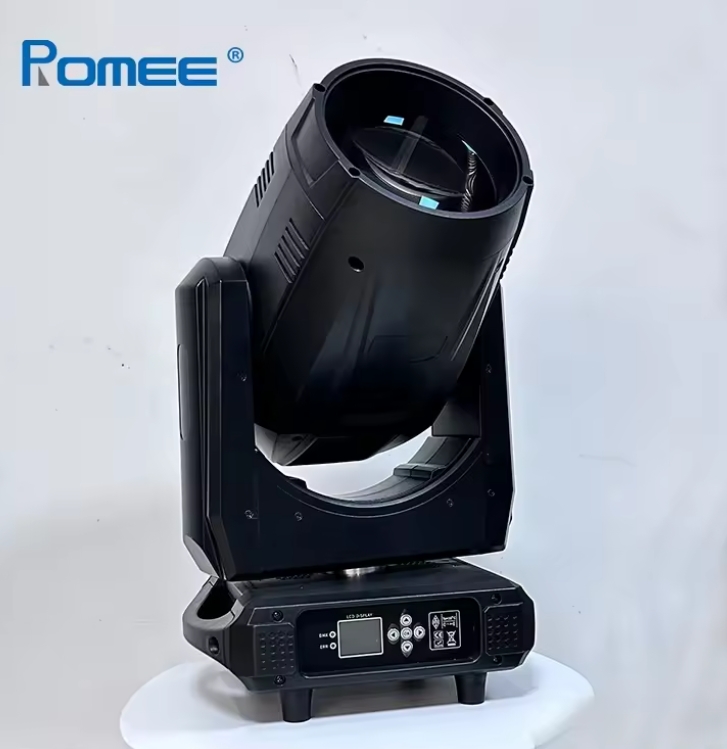

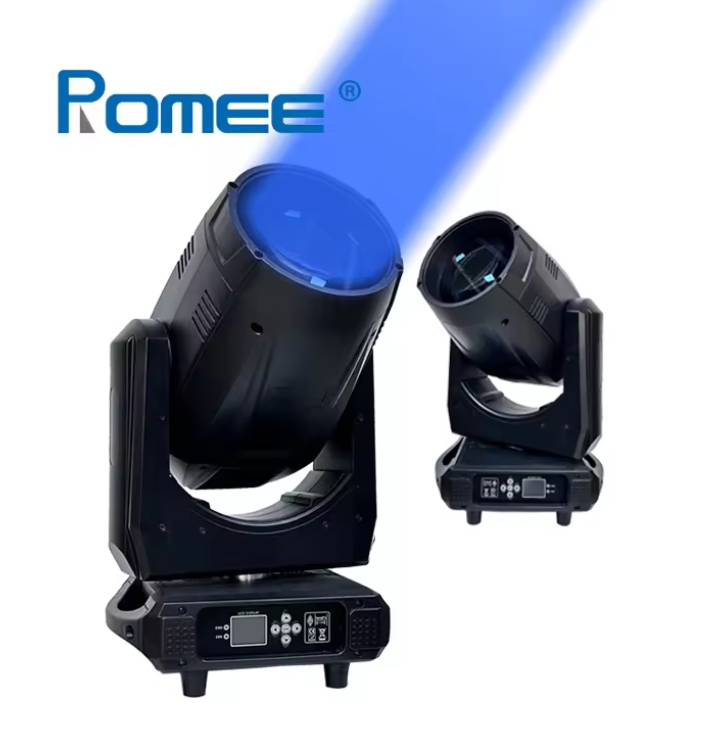

12R Moving Head Beam Light
|
Voltage
|
AC110V-240V/50-60Hz
|
Light source
|
YODN MSD
|
light power
|
315W
|
Rated power
|
500W
|
CH
|
18CH
|
Horizontal scan
|
540°(16bit precision scan) electro correction
|
Vertical scan
|
270°(16bit precision scan) electro correction
|
Dimming system
|
0-100% linear adjustment
|
Focusing system
|
linear adjustment, 5 meters to infinity
|
Atomization system
|
1 independent atomization effect, soft and natural light spot
|
Beam angle
|
0-4 °
|
Color temperature correction
|
3200K-7500K
|
High-speed strobe
|
5-13 times / second Supports mechanical strobe effect, adjustable speed strobe effect, strobe macro function
|
Fixed colors
|
17 colors + white light, with rotating rainbow effect, color half-color function
|
Fixed pattern
|
17 pattern pieces + white light, with gradient effect of rotation and pattern swing effect
|
Prism
|
standard configuration 8+16+24 honey comb prim and 16-sided prism, can be overlapped and provide 3-layer or multiple-layer or
single-layer for customer to choose
|
Colorful pattern
|
Equipped with a colorful plate, can play colorful beam effect and colorful prism effect
|
Control signal
|
international standard DMX512
|
Cooling method
|
use axial fan to enhance ventilation and cooling
|
Safety device
|
with electronic temperature control overheating protection, electronic temperature control automatic power-off protection in case
of overheating system failure
|
Appearance material
|
high temperature resistant plastic
|
Working temperature
|
-20 ℃~40℃
|
Protection level
|
Ip20
|
Net weight
|
15.5kg
|
